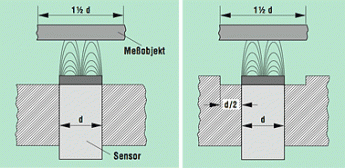

Assembly: Possible metal parts to the side of sensor should maintain a distance that is equivalent to the radius of the selected sensor.
The high sensitivity of the eddy current sensors requires a careful and vibration-free assembly. The installation distance should be selected as such that maximum range of a sensor is not exceeded while in operation and contact with the measured object is avoided. The size of the measured object should correspond to 1 ½-times the size of the active surface of the sensor.


The sensors are radiation-hard (tested up to 10 kGray)

Sensor Family I-W-A/A2

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A2  M 3 0-0,4mm 12002 A02_A00_e.pdf

Sensor Family I-W-A/A3

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A3  M6x0,75 0-0,8mm 12003 A03_A00_e.pdf
A3-S01  d=6mm l=12mm 0-0,8mm 12003-S01 A03_S01_e.pdf
A3-S02  d=6mm l=12mm 0-0,8mm 12003-S02 A03_S02_e.pdf
A3-S03  M10x1 0-0,8mm 12003-S03 A03_S03_e.pdf
A3-S04  d=9mm l=42,5mm 0-0,8mm 12003-S04 A03_S04_e.pdf
A3-S05  d=3,7 l=15mm 0-0,8mm 12003-S05 A03_S05_e.pdf
A3-S06  d=4mm l=7mm 0-0,8mm 12003-S06 A03_S06_e.pdf
A3-S07  d=5mm l=6mm 0-0,8mm 12003-S07 A03_S07_e.pdf
A3-S08  d=4mm l=6mm 0-0,8mm 12003-S08 A03_S08_e.pdf

Sensor Family I-W-A/A4

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A4  M6x0,75 0-1,25mm 12004 A04_A00_e.pdf
A4-S01  d=5mm l=28,7mm 0-1,25mm 12004-S01 A04_S01_e.pdf
A4-S02  M6x0,5 0-1,25mm 12004-S02 A04_S02_e.pdf
A4-S03  M10x1 0-1,25mm 12004-S03-xx A04_S03_e.pdf
A4-S04  d=8mm l=33mm 0-1,25mm 12004-S04 A04_S04_e.pdf
A4-S05  M10x1 0-1,25mm 12004-S05 A04_S05_e.pdf
A4-S06  d=8mm l=10mm 0-1,00mm 12004-S06 A04_S06_e.pdf
A4-S07  M6x0,75 0-1,25mm 12004-S07 A04_S07_e.pdf
A4-S08  M6x0,75 0-1,25mm 12004-S08 A04_S08_e.pdf
A4-S09  d=9mm l=42mm 0-1,25mm 12004-S09 A04_S09_e.pdf

Sensor Family I-W-A/A7

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A7  M10x1 0-2,5mm 12007 A07_A00_e.pdf
A7-S01  Disk d=25x4,0mm 0-2,5mm 12007-S01 A07_S01_e.pdf
A7-S02  d=8mm l=21,5mm 0-2,5mm 12007-S02 A07_S02_e.pdf
A7-S03  d=8mm l=21,5mm 0-2,5mm 12007-S03 A07_S03_e.pdf
A7-S04  M10x1 0-2,0mm 12007-S04 A07_S04_e.pdf
A7-S05  M10x1 0-2,5mm 12007-S05 A07_S05_e.pdf
A7-S06  M12x1,25 0-2,5mm 12007-S06 A07_S06_e.pdf
A7-S07  M12x1,25 0-2,5mm 10007-S07 A07_S07_e.pdf
A7-S08  M12x1,25 0-2,0mm 10007-S08 A07_S08_e.pdf
A7-S09  8h7 0-2,0mm 12007-S09 A07_S09_e.pdf
A7-S10  M10x1 0-2,0mm 12007-S10 A07_S10_e.pdf
A7-S11  25x9x4mm 0-2,5mm 12007-S11 A07_S11_e.pdf
A7-S12  M14x1 0-2,5mm 10007-S12 A07_S12_e.pdf
A7-S13  M10x1 0-2,0mm 12007-S13 A07_S13_e.pdf

Sensor Family I-W-A/A11

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A11  M14x1 0-4mm 12011 A11_A00_e.pdf
A11-S01  d=13mm l=16,9mm 0-4mm 12011-S01 A11_S01_e.pdf
A11-S02  d=12mm l=9,7mm 0-4mm 12011-S02 A11_S02_e.pdf
A11-S03  M14x1 0-4mm 11011-S03 A11_S03_e.pdf
A11-S04  M14x1 0-4mm 10011-S04-xx A11_S04_e.pdf
A11-S05  M14x1 0-3mm 10011-S05 A11_S05_e.pdf
A11-S06  d=12mm l=15mm 0-3mm 12011-S06 A11_S06_e.pdf
A11-S07  M16x1 0-4mm 12011-S07 A11_S07_e.pdf
A11-S08  M14x1 0-3mm 12011-S08 A11_S08_e.pdf
A11-S09  d=13mm l=16mm 0-4mm 12011-S09 A11_S09_e.pdf
A11-S10  M14x1 0-3mm 12011-S10 A11_S10_e.pdf
A11-S11  Disk d=30x5,5mm 0-4mm 12011-S11 A11_S11_e.pdf
A11-S12  d=12mm l=63,9mm 0-4mm 10011-S12-60 A11_S12_e.pdf

Sensor Family I-W-A/A14

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A14  M16x1 0-6mm 12014 A14_A00_e.pdf
A14-S01  d=16mm l=33,5mm 0-6mm 12014-S01 A14_S01_e.pdf

Sensor Family I-W-A/A18

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A18  M22x1,5 0-7,5mm 11018 A18_A00_e.pdf
A18-S01  M22x1,5 0-7,5mm 12018-S01 A18_S01_e.pdf
A18-S02  Disk d=40x8,0mm 0-7,5mm 12018-S02 A18_S02_e.pdf

Sensor Family I-W-A/A22

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A22  M27x1,5 0-12mm 10022 A22_A00_e.pdf
A22-S01  M27x1,5 0-10mm 11022-S01 A22_S01_e.pdf
A22-S02  M27x1,5 0-8mm 10022-S02 A22_S02_e.pdf
A22-S03  Disk d=45x9,0mm 0-10mm 12022-S03 A22_S03_e.pdf

Sensor Family I-W-A/A26

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A26  M30x1,5 0-10mm 11026 A26_A00_e.pdf
A26-S01  7/8-14 UNF-2B 0-10mm 11026-S01 A26_S01_e.pdf
A26-S02  M30x1,5 0-10mm 12026-S02 A26_S02_e.pdf

Sensor Family I-W-A/A30

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A30  M22x1,5 0-15mm 11030 A30_A00_e.pdf
A30-S01  M36x1,5 0-15mm 11030-S01 A30_S01_e.pdf
A30-S02  M36x1,5 0-15mm 12030-S02 A30_S02_e.pdf

Sensor Family I-W-A/A36

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A36  M22x1,5 0-18mm 11036 A36_A00_e.pdf
A36-S01  M22x1,5 0-18mm 12036-S01 A36_S01_e.pdf

Sensor Family I-W-A/A42

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A42  M22x1,5 0-20mm 11042 A42_A00_e.pdf
A42-S01  M30x1,5 0-20mm 11042-S01 A42_S01_e.pdf

Sensor Family I-W-A/A68

 Sensor Type  Size Measuring Range Order No. Download Datasheet
A68  M30x1,5 0-30mm 11068 A68_A00_e.pdf
